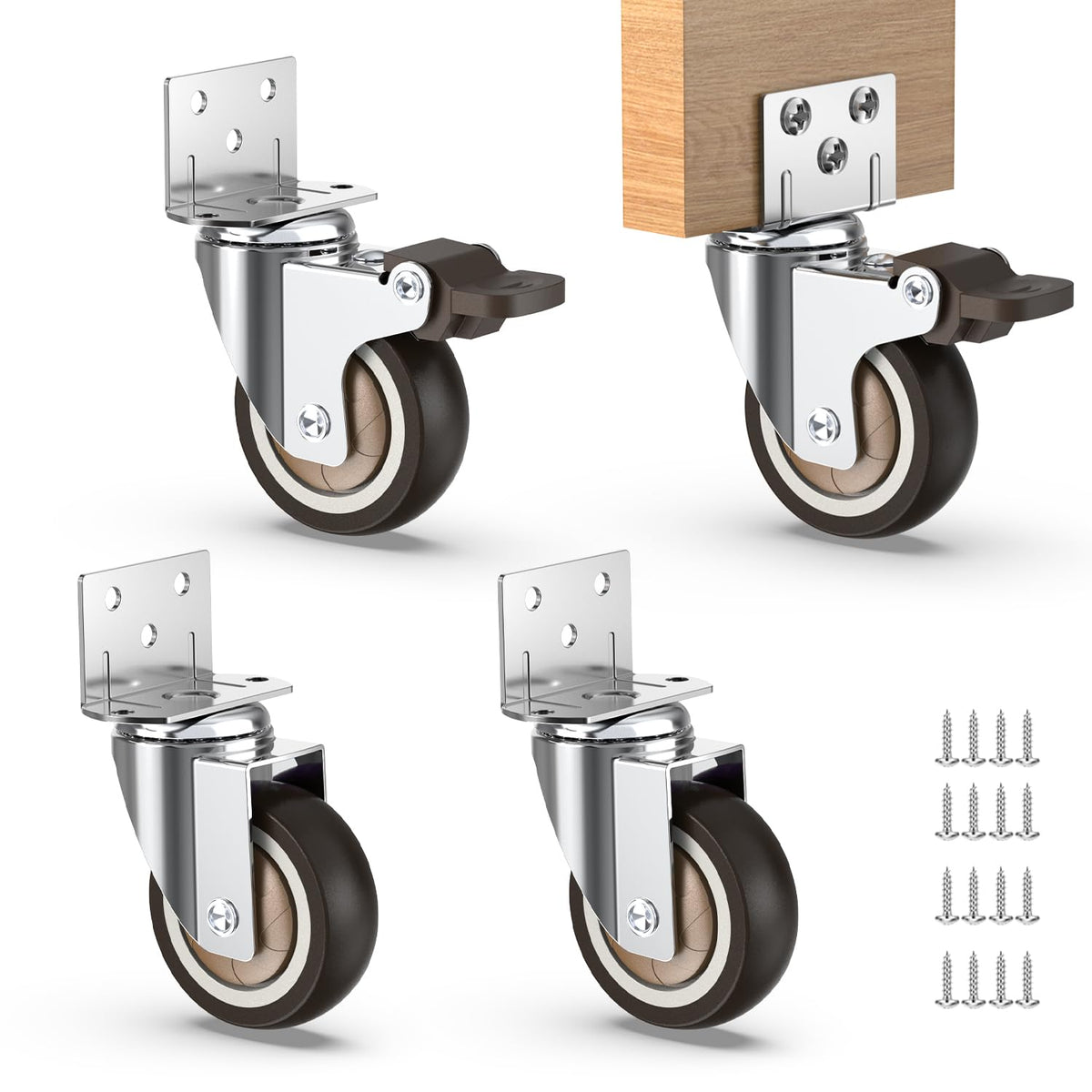

Set of four 2 inch L-shaped swivel caster for furniture, two with brakes and two without, includes mounting screws

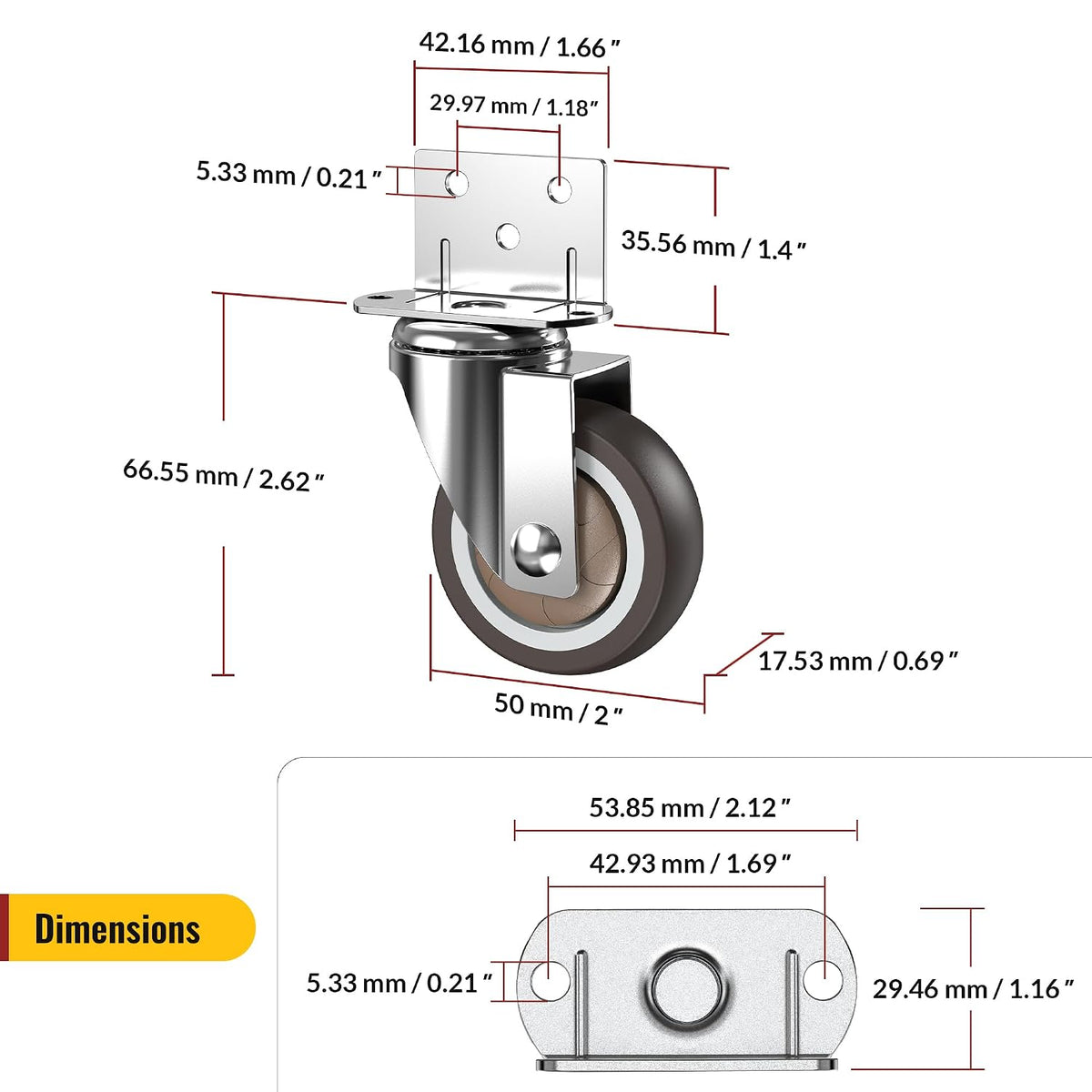

Dimension drawing of 2 inch L-shaped swivel caster for furniture
2 inch L-shaped casters supporting 250lbs for 4 load capacity
Wooden crib with Holkie 2 in L-shaped casters wheels, features like chromed brackets and TPR wheel tread.
Wooden Rolling Plant Stand with 2 inch L-shaped casters installed. DIY with yours rolling cart- Holkie

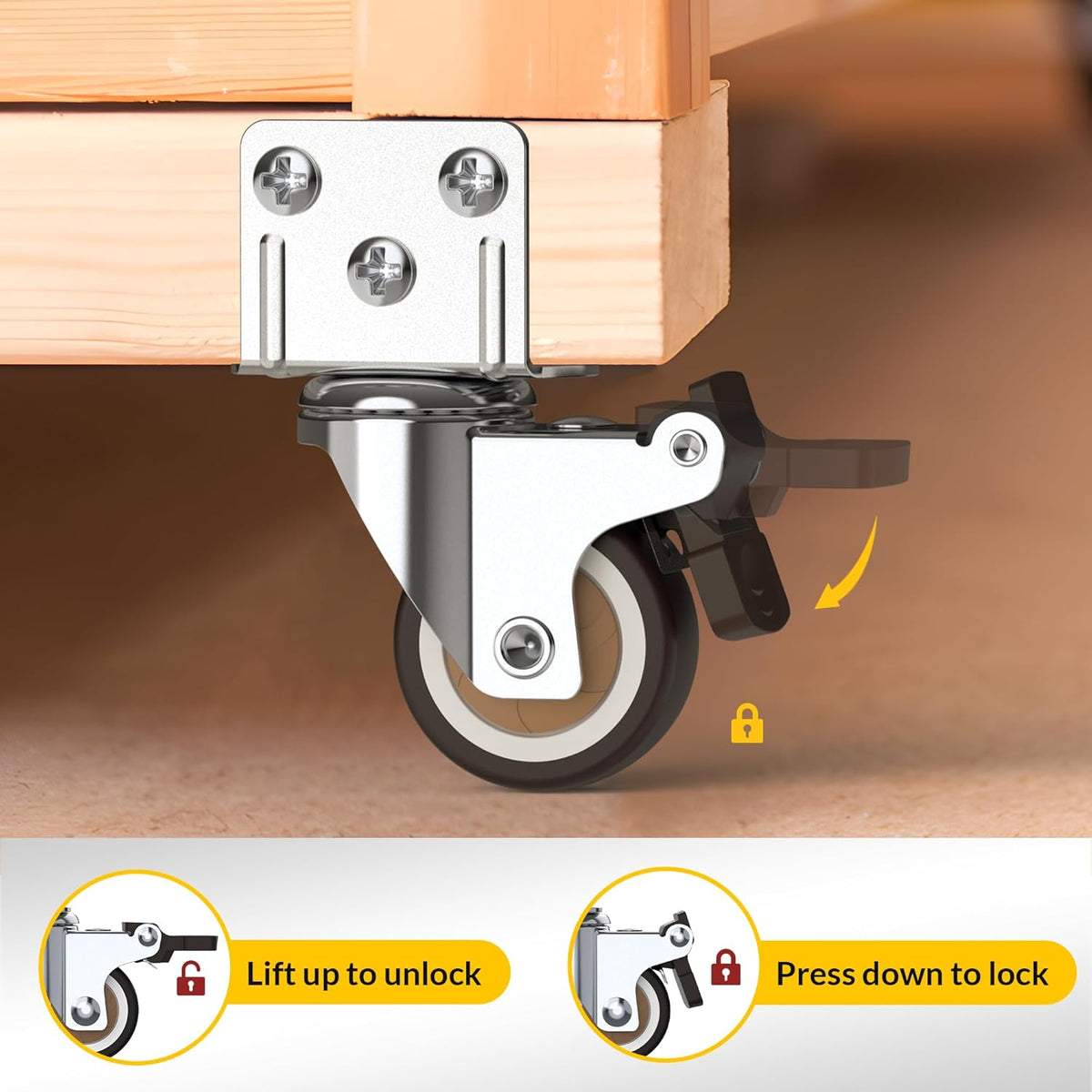

2 inch L-shaped caster with total brake function, shown lock and unlock method -Holkie
2 inch L-shaped casters, smoothly on wood, tile, carpet and concrete

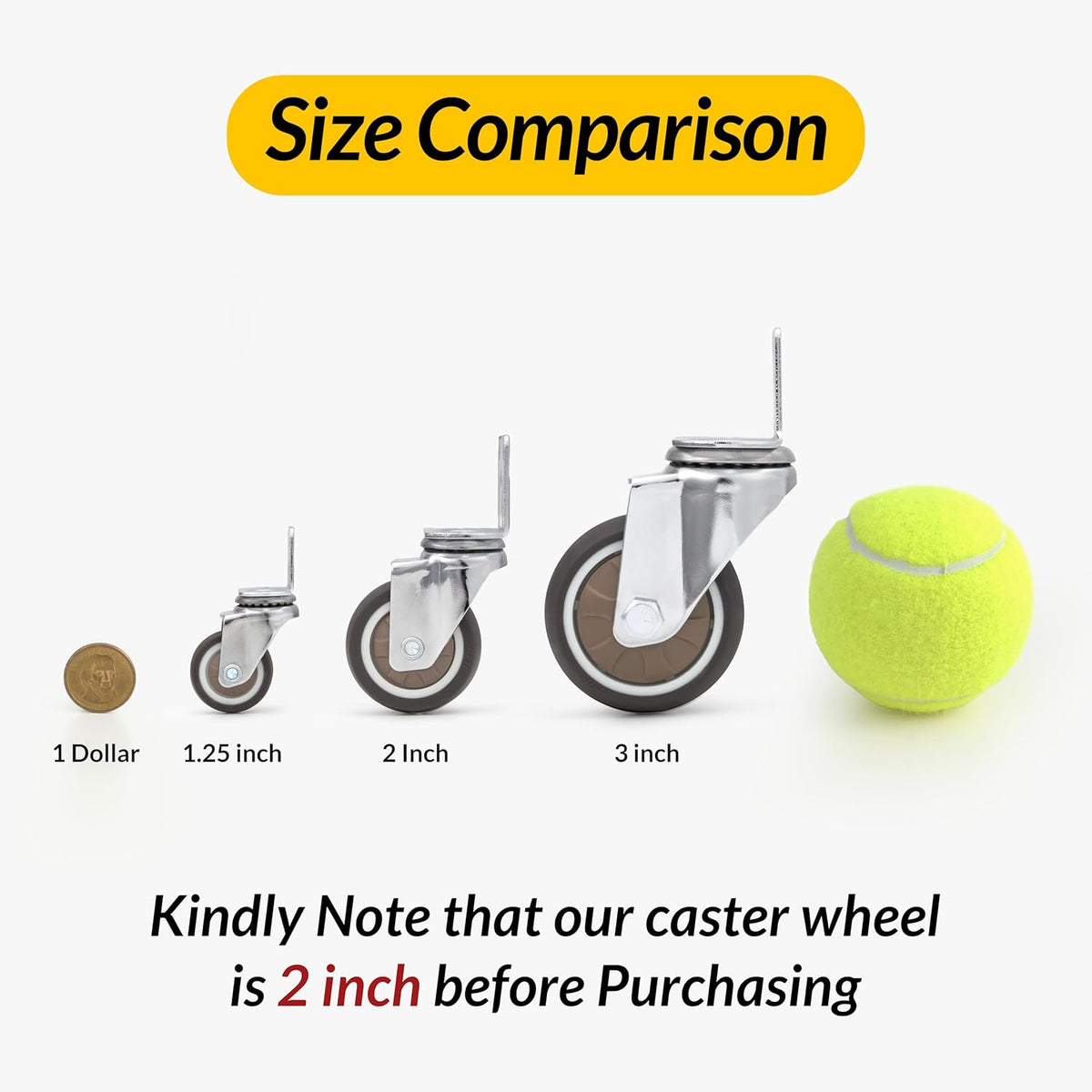

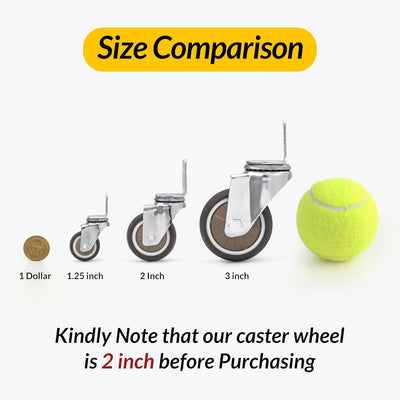

L-shaped caster size comparison with common household items

1.25-3 in L-Shaped Side-Mount Furniture Casters for Narrow Legs

Sale price$18.99 USDRegular price $19.99 USD
Configuration
Configuration: 2 inch
Pack Size
Pack Size: 4 Casters

Product highlights

TPR
TPR

Wheel Material

360° swivel
360° swivel

Casters function

250 lb (115 kg)
250 lb (115 kg)

Load capacity

2 in (50 mm)
2 in (50 mm)

Wheel diameter

0.2 in (5.1 mm)
0.2 in (5.1 mm)

Hole size

2.6"
2.6"

Overall height
🛞×4
Sold as a set of 4
Order "1" = 4 casters · Packaged as a set
Original Price
You Save
Checkout Total
Add 0 more to get 0% off | Need a Larger Quantity?
Request Bulk Quote
Bulk pricing available

Related Products

Ships within 3-7 business days.

3-Year Warranty

Specification

Dimensions - 2 IN
Horizontal Mounting Plate Size 2.12 x 1.16 in (53.85 x 29.46 mm)
Horizontal Mounting Hole Diameter 0.21 in (5.33 mm)
Horizontal Mounting Hole Spacing 1.69 in (42.93 mm), center-to-center
Vertical Side Plate Size 1.66 x 1.40 in (42.16 x 35.56 mm)
Vertical Mounting Hole Diameter 0.21 in (5.33 mm)
Vertical Mounting Hole Spacing 1.18 in (29.97 mm), center-to-center
Wheel Diameter 2 in (50 mm)
Wheel Width 0.69" (17.53 mm)
Overall Height 2.62" (66.55 mm)
Load Capacity (set of 4) 250 lb
Dimensions - 3 IN
Horizontal Mounting Plate Size 2.90 x 1.58 in (73.66 x 40.13 mm)
Horizontal Mounting Hole Diameter 0.24 in (6 mm)
Horizontal Mounting Hole Spacing 2.41 in (61.21 mm), center-to-center
Vertical Side Plate Size 1.96 x 1.70 in (49.78 x 43.18 mm)
Vertical Mounting Hole Diameter 0.24 in (6 mm)
Vertical Mounting Hole Spacing 1.37 in (34.8 mm), center-to-center
Wheel Diameter 3 in (76 mm)
Wheel Width 0.97 in (24.64 mm)
Overall Height 4.10 in (104.14 mm)
Load Capacity (set of 4) 660 lb
Dimensions - 1.25 IN
Horizontal Mounting Plate Size 1.57 x 0.78 in (40 x 20 mm)
Horizontal Mounting Hole Diameter 0.17 in (4.3 mm)
Horizontal Mounting Hole Spacing 1.25 in (32 mm), center-to-center
Vertical Side Plate Size 1.25 x 1.00 in (32 x 25.4 mm)
Vertical Mounting Hole Diameter 0.17 in (4.3 mm)
Vertical Mounting Hole Spacing 0.79 in (20.2 mm), center-to-center
Wheel Diameter 1.25 in (32 mm)
Wheel Width 0.47 in (11.94 mm)
Overall Height 1.83 in (46.6 mm)
Load Capacity (set of 4) 100 lb
Dimensions - 2 IN ORANGE
Horizontal Mounting Plate Size 2.00 x 2.75 in
Horizontal Mounting Hole Diameter 0.25 in
Horizontal Mounting Hole Spacing 2.20 in, center-to-center
Vertical Side Plate Size 2.75 x 1.63 in
Vertical Mounting Hole Diameter 0.25 in
Vertical Mounting Hole Spacing 1.50 in, center-to-center
Wheel Diameter 1.96 in
Wheel Width 0.92 in
Overall Height 2.87 in
Load Capacity (set of 4) 550 lb
Features
Quantity 4
Casters Function swivel
Swivel Lock yes
Brake Type pedal brake
Wheel Material TPR (Thermoplastic Rubber)
Bearing Type double sealed ball bearings
Accessories mounting screws
Where These Casters Are Used

Recommended Applications

Narrow Furniture Legs

Rectangular Furniture Frames

Tables and Coffee Tables

Desks and Workstations

Kitchen Islands and BBQ Tables

Cabinets and Storage Units

Under-Bed Drawers

Plant Stands

Garden Boxes

Toy Storage

Display Fixtures

Utility Carts

Light-Duty Dollies

About These Casters

L-Shaped Side-Mount Furniture Casters

Traditional flat top plate casters may be difficult to install on slim or narrow furniture legs. These L-shaped side-mount casters are designed to use both the bottom and side surfaces of approximately rectangular furniture legs, helping save installation space and providing a more secure mounting solution.

The horizontal mounting plate attaches to the bottom surface, while the vertical side plate can be secured to the side of the furniture leg or frame. This right-angle design is especially useful for narrow furniture, compact cabinets, tables, carts, drawers, and other applications with limited mounting space.

Smooth TPR Wheels

The wheel tread is made of TPR, also known as thermoplastic rubber. TPR wheels provide a resilient rolling surface for smooth and quiet movement on ceramic tile, carpet, laminate, hardwood, and other common indoor surfaces.

Locking and Swivel Function

Each 4-caster set includes 2 locking casters and 2 non-locking swivel casters. All four casters swivel for flexible 360-degree movement, while the pedal brakes on the locking casters help keep furniture or equipment in place when needed.

Easy Installation

Each 4-caster set includes 20 mounting screws and an installation guide. Before installation, confirm that the furniture leg or frame is strong enough for the intended load. Check the mounting plate dimensions, hole diameter, and hole spacing to ensure a proper fit.

Common Questions

FAQ

What is the purpose of an L-shaped plate caster?

An L-shaped plate caster is designed for narrow, slim, or approximately rectangular furniture legs where a traditional flat top plate may not fit. The horizontal and vertical plates can use two adjacent surfaces for installation and help save mounting space.

How should these L-shaped casters be installed?

The horizontal plate can be mounted to the bottom surface, while the vertical plate can be secured to the side surface of the furniture leg or frame. Check the mounting plate dimensions and hole spacing before installation.

What is included in the 4-caster set?

Each 4-caster set includes 2 locking casters, 2 swivel casters, 20 mounting screws, and an installation guide.

What material are the wheels made of?

The wheel tread is made of TPR, also known as thermoplastic rubber. TPR provides a resilient rolling surface suitable for many indoor furniture and light-duty equipment applications.

Do the locking casters have brakes?

Yes. The two locking casters include pedal brakes. Press the brake to help keep the furniture or equipment in place, and release the brake when movement is needed.

Do all four casters swivel?

Yes. All four casters are swivel casters. Two include locking brakes, while the other two are non-locking swivel casters.

What surfaces are suitable for these casters?

They are suitable for common indoor surfaces such as ceramic tile, carpet, laminate, hardwood, and sealed concrete. For best performance, use them on relatively smooth and clean surfaces.

How much weight can these casters support?

Load capacity varies by wheel size and color. For example, the 2-inch Brown set supports up to 250 lb per set of 4. Please check the specification for the selected variant before purchase.

What applications are these casters suitable for?

They can be used on furniture, cabinets, BBQ tables, kitchen islands, plant stands, dollies, cribs, under-bed drawers, coffee tables, desks, garden boxes, and other light-duty projects.

Key Features

Traditional top plate casters can be difficult to install on slim or narrow furniture legs. These L-shaped side-mount casters use both the bottom and side surfaces of approximately rectangular furniture legs, helping save installation space while providing a more secure mounting solution.

Each 4-caster set includes 2 locking casters and 2 swivel casters. The swivel casters provide smooth 360-degree movement, while the locking casters help keep furniture and equipment in place when needed.

The TPR wheels offer smooth and quiet rolling on ceramic tile, carpet, laminate, hardwood, and other common indoor surfaces. Available in multiple wheel sizes and colors for furniture, carts, cabinets, plant stands, tables, drawers, and other light-duty applications. Please check the selected variant specifications before purchase.
