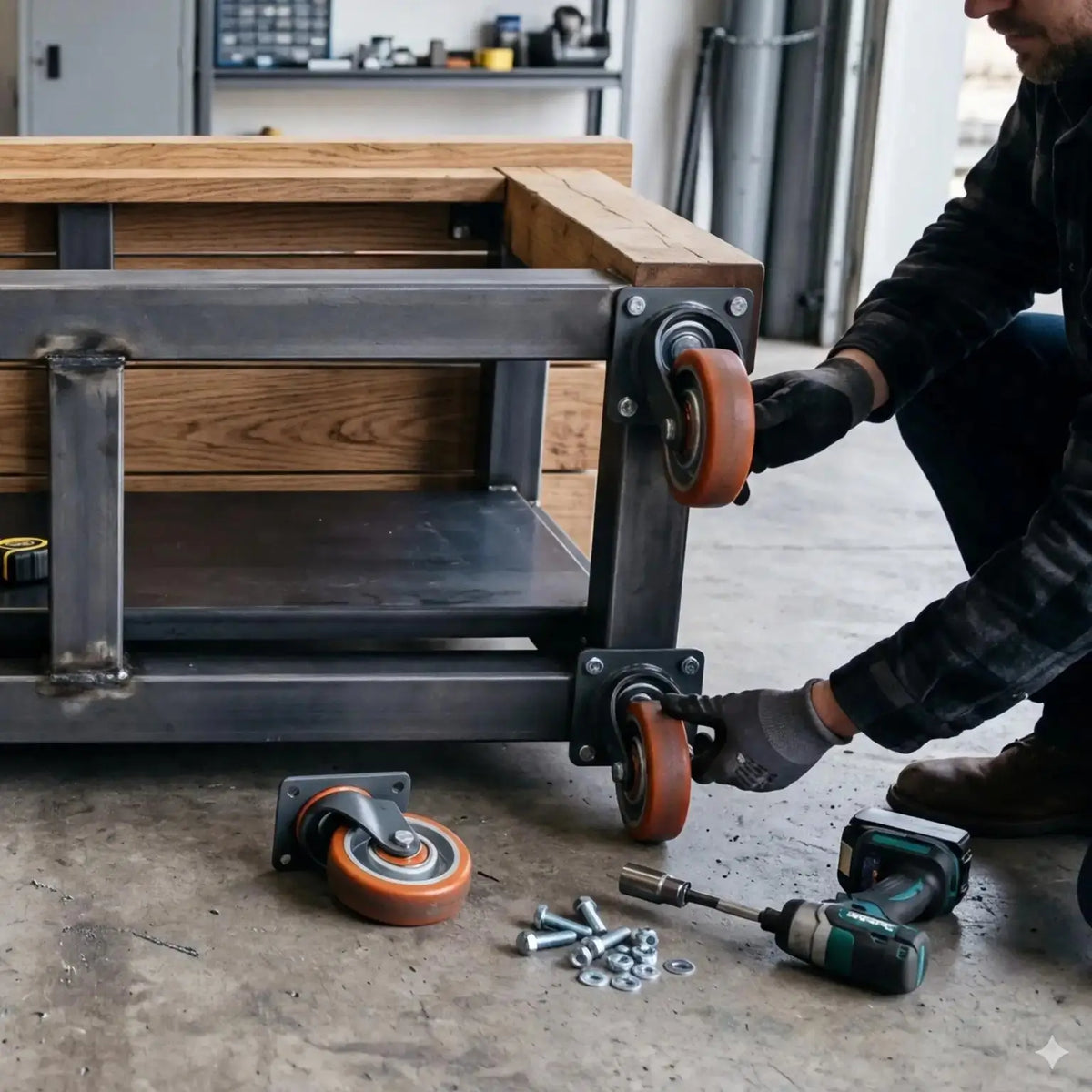

How to Install Plate Casters

Installing plate casters correctly is essential for ensuring smooth movement, safety, and long-term durability of your equipment. Whether you are working with industrial carts, workbenches, or mobile storage units, proper installation directly impacts load performance and floor protection.

In this guide, we will walk you through how to install plate mount casters efficiently, including tools required, preparation steps, and common mistakes to avoid.

Before starting, make sure you select the right type of plate casters for your application, including load capacity and mounting size.

What Are Plate Casters?

Plate casters, also known as plate mount casters, feature a flat mounting plate that attaches securely to the bottom of equipment using bolts or screws. They are widely used in industrial and commercial environments due to their stability and ability to support heavier loads compared to stem-mounted alternatives.

Common Types of Plate Mount Casters

• Swivel plate casters – allow 360-degree rotation for easy maneuverability
• Rigid plate casters – provide straight-line movement and stability
• Heavy duty plate casters – designed for high load capacities and industrial use

Tools and Materials Needed

Before installing your plate wheels, gather the following tools:

• Drill or impact driver
• Wrench or socket set
• Measuring tape
• Marker or pencil
• Mounting bolts, washers, and lock nuts

Choosing the Right Hardware

Always use high-grade bolts that match the mounting holes of your plate casters. For heavy duty plate casters, grade 5 or grade 8 bolts are recommended to ensure safety under load.

Step-by-Step Installation Process

Step 1: Position the Plate Casters

Turn your equipment upside down and position each caster at the corners. Ensure equal spacing and alignment to distribute weight evenly.

Step 2: Mark the Drill Holes

Use a marker to outline the holes on the mounting plate. Accurate marking ensures proper alignment and prevents instability.

Step 3: Drill Pilot Holes

Drill pilot holes at the marked positions. This step is especially important when working with hardwood or metal surfaces.

Step 4: Attach the Casters

Place the caster over the drilled holes and insert bolts through the plate. Secure them with washers and nuts underneath.

Step 5: Tighten Securely

Use a wrench to tighten all bolts evenly. Avoid overtightening, which can damage the mounting surface or hardware.

Step 6: Test Mobility

Flip the equipment back upright and test the movement. Check that all swivel plate casters rotate smoothly and brakes function properly if included.

Installation Tips for Better Performance

Ensure Load Distribution

Always use four casters for balanced weight distribution. For heavy equipment, consider adding a fifth caster in the center.

Match Floor Type

Select wheel materials that suit your flooring. Softer wheels protect floors, while harder wheels perform better on carpets or rough surfaces.

Use Locking Casters When Needed

For safety, install at least two locking plate mount casters to prevent unwanted movement.

Common Installation Mistakes to Avoid

Using Incorrect Bolt Sizes

Mismatched hardware can lead to loose casters and safety hazards.

Poor Alignment

Misaligned casters can cause uneven rolling and increased wear.

Ignoring Weight Capacity

Always verify that your heavy duty plate casters can handle the total load, including the equipment weight.

Applications of Plate Casters

Plate casters are widely used in:

• Industrial carts and trolleys
• Warehouse equipment
• Medical devices
• Workbenches and tool cabinets
• Retail displays

Maintenance After Installation

Regular Inspections

Check bolts and mounting plates periodically to ensure they remain tight.

Lubrication

Apply lubricant to swivel mechanisms for smoother operation.

Wheel Replacement

Replace worn-out plate wheels to maintain performance and protect floors.

Conclusion

Installing plate casters properly ensures safety, durability, and smooth mobility. By following the correct installation steps and using appropriate hardware, you can maximize the lifespan and efficiency of your equipment.

For high-quality options, explore our full range of plate casters designed for both light-duty and heavy-duty applications.

Frequently Asked Questions

Can I install plate casters without drilling?

No, most plate mount casters require drilling to ensure a secure attachment.

How many plate casters do I need?

Typically four, but heavy equipment may require additional support casters.

What size bolts should I use?

Use bolts that match the mounting plate holes, usually 1/4" to 3/8" depending on caster size.

Are swivel plate casters better than rigid ones?

Swivel casters provide better maneuverability, while rigid casters offer stability for straight movement.

Can plate casters be used outdoors?

Yes, but choose corrosion-resistant materials such as stainless steel or polyurethane wheels.
